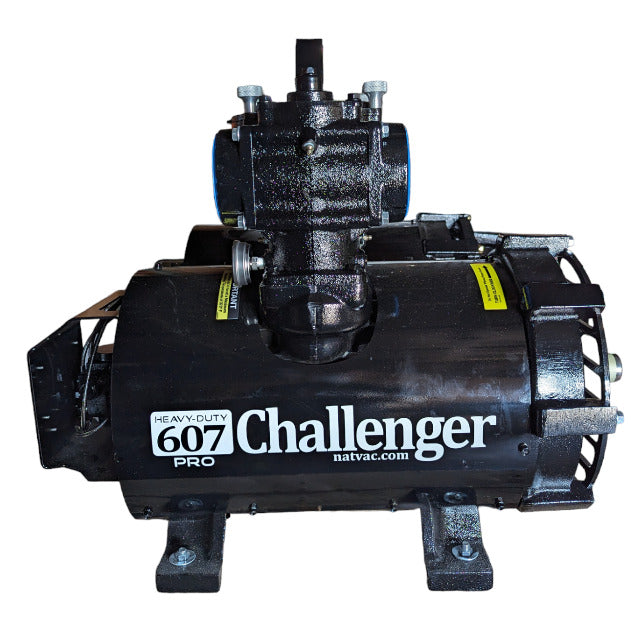

VACUUM PUMP CHALLENGER 607 PRO CW FAN

• Lifetime warranty on the housing against cracking

• Ductile iron housing (tough like steel).

• The NVE bi-rotational, four port oil pump is exclusive to our “oil management system” delivering the precise amount of oil required for any job. Easily adjustable to 5-24 oz. per hour.

• Rugged braided stainless steel oil delivery lines

• Vacuum relief boss

• Vane flush port with valve

• Vane wear inspection port

• Integral, easily accessible & cleanable, stainless steel final filter

• Proven crash protection allowing all major components to survive a catastrophic failure

• Remote mount 5 quart see through oil tank for constant oil level monitoring

• Thermometer to monitor exhaust temperature

• Multiple drive options (gearbox, belt, hydraulic, and direct)

• Two year warranty against manufacturer defect

• Designed, built, and supported in the USA

FAN-COOLED OR LIQUID COOLED 607 PRO | SPECIFICATIONS

Air Flow - Free Air 380 CFM

*Maximum Vacuum 29" HG

Maximum Intermittent Pressure 30 PSI

*Operating Range - RPM 1250

HP Required @ Vacuum 25

HP Required @ 20 PSI 28

Porting Size 3" Shaft Size (3/8” Key) 1 1/2" REV
