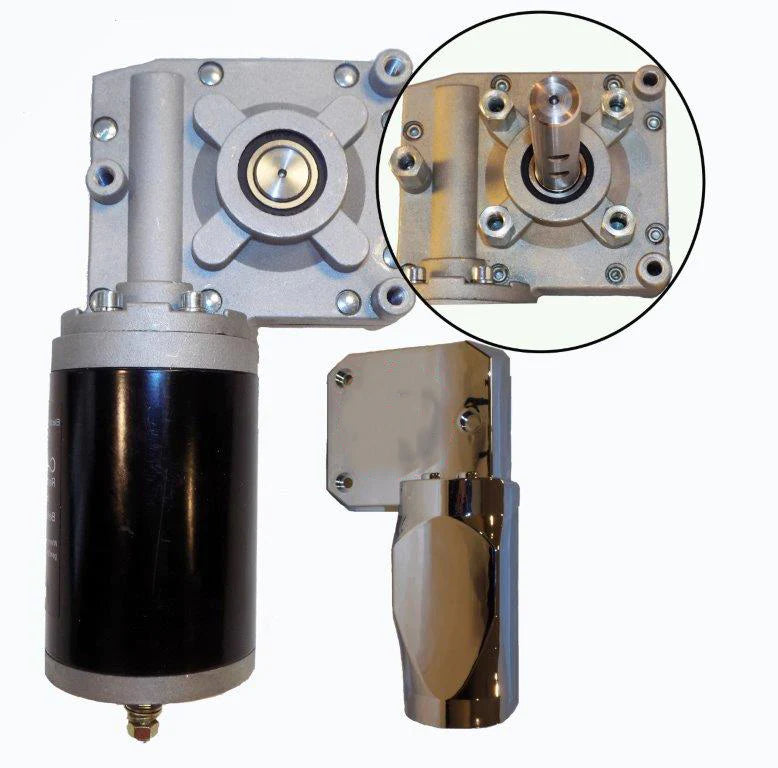

TARP MOTOR

The Apache Slim Universal Dump Truck Tarp Motor 0.8HP 50:1 Gear Ratio 12V is our best-selling motor–it is the strongest and fastest motor available at 0.8 HP and 50:1 Gear Ratio. The unique 5-bolt pattern makes it compatible with other brands' 3,4, and 5-bolt motors, making it a perfect replacement motor for any tarp system up to 28'.

• Type: Direct Drive
• Gear ratio: 50:1
• Power: 0.8 HP
• Output Shaft: 3/4" x 3-3/4", with two 5/16" through-holes
• Voltage: 12V
• Operating torque: 44 NM
• Current Draw @ rated torque: 40 Amps
• RPM: 76~80
• Wattage: 600W
• Gear: Worm to Wheel
• Mounting: Three 5/16"-18 bolts
• Braking: Inherent
• Dimensions: L:12", W:6.5", H:4"
